Corded remote control Hängetaster / Pendant Station LadyX by B-COMMAND

with configurable buttons10-button12-button

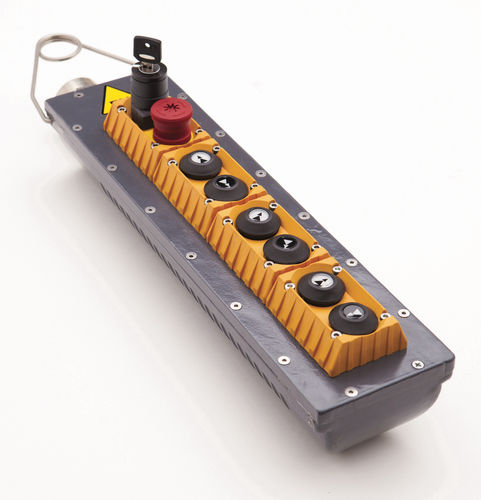

The pendant control station LadyX is a single- or double-row control unit for auxiliary power applications in hazardous areas. Due to the specially developed metal housing made of aluminium, special sealings and explosion-proof cable entries, the pendant switch LadyX has received the approvals for ATEX and IECEx. An explosive atmosphere is a mixture of air and gases, vapors, fumes or combustible powders, where combustion quickly propagates (explosion) after ignition at atmospheric pressure. The optimized interior allows quick and easy wiring of the contact elements. Bridge contacts are available to minimize the cabling effort. All contact elements are equipped with self-cleaning connections in silver alloy, which minimizes maintenance. Simple pushbuttons as 1- or 2-speed version, emergency stop mushroom buttons, selector switches and key-operated selector switches are available as operating elements. Illuminated elements (signal lamp, illuminated pushbutton) cannot be installed. We offer a wide range of standard symbol discs for labelling. Individual symbol discs can also be manufactured on customer request. The cable entry can be customized. The cable entries are available in various thread sizes (1/2", 3/4", 1", M20x1.5, M25x1.5, M32x1.5). The scope of delivery includes a hook on which a wire rope can be mounted as a holder for the pendant control unit. The pendant station can optionally be equipped with an additional heater. We would be glad to create your individual pendant control station in the desired configuration together with you. Please contact us by phone or e-mail. We are looking forward to your inquiry.
