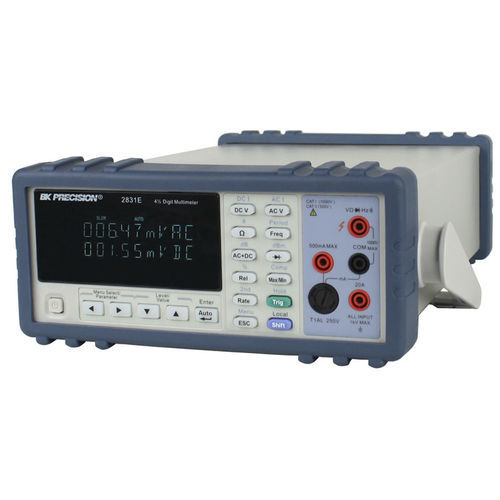

True RMS multimeter 2831E
digitalbenchtop1000 V

True RMS multimeter - 2831E - B&K Precision - digital / benchtop / 1000 V
True RMS multimeter - 2831E - B&K Precision - digital / benchtop / 1000 V
True RMS multimeter - 2831E - B&K Precision - digital / benchtop / 1000 V - image - 2
True RMS multimeter - 2831E - B&K Precision - digital / benchtop / 1000 V - image - 3
True RMS multimeter - 2831E - B&K Precision - digital / benchtop / 1000 V - image - 4
True RMS multimeter - 2831E - B&K Precision - digital / benchtop / 1000 V - image - 5
True RMS multimeter - 2831E - B&K Precision - digital / benchtop / 1000 V - image - 6
True RMS multimeter - 2831E - B&K Precision - digital / benchtop / 1000 V - image - 7
Add to favorites
Compare this product


Characteristics

Display
digital
Form
benchtop
Max voltage
1000 V, 300 V
Max current
20 A
Safety rating
cat II, cat I
Additional features
frequency
Applications
for training
Other characteristics
true RMS, USB, with PC interface
Max DC voltage

Max.: 1,000 V

Min.: 0.2 V

Max AC voltage

Max.: 750 V

Min.: 0.2 V

Max DC current

Max.: 20,000 mA

Min.: 2 mA

Max AC current

Max.: 20,000 mA

Min.: 2 mA

Max resistance measure

Max.: 50,000,000 Ohm

Min.: 200 Ohm

Max frequency measure

Max.: 1 MHz

Min.: 0 MHz

Max DC voltage resolution

Max.: 100 mV

Min.: 0 mV

Max AC voltage resolution

Max.: 100 mV

Min.: 0 mV

Max DC current resolution

Max.: 1 mA

Min.: 0 mA

Max AC current resolution

Max.: 10 mA

Min.: 0 mA

Max resistance resolution

Max.: 1 kOhm

Min.: 0.00001 kOhm

DC voltage precision

0.02 %, 0.04 %

AC voltage precision

0.35 %, 0.4 %, 0.5 %, 0.8 %

DC current precision

0.05 %, 0.08 %, 0.25 %, 0.3 %

AC current precision

0.5 %, 1.5 %, 2 %, 2.5 %

Resistance precision

0.1 %, 0.15 %, 0.3 %

Length

355 mm
(13.98 in)

Width

225 mm
(8.86 in)

Height

100 mm
(3.94 in)

Weight

2.5 kg
(5.51 lb)

Description

The 2831E and 5491B are versatile and dependable bench-top digital multimeters suitable for applications in education, service & repair and manufacturing requiring basic and reliable measurements. Additionally, these multimeters enhance your productivity with built-in math functions and USB connectivity, features not found in other bench meters in this price category. The meters take typical multimeter measurements such as volts, ohms, and amps with great accuracy and stability and were designed for cost conscious users requiring a basic and dependable meter with a broad range of extra features offered at a value price. Up to 50,000 count display resolution Basic VDC accuracy of 0.02% for the 5491B and 0.03% for the 2831E Dual display to indicate two measurements simultaneously AC + DC True RMS Up to 25 readings per second measurement rate Built-in math functions: Rel, Max/Min, dBm, dB, %, Hold, Compare SCPI compatible Rack-mountable with available accessory
