Batch reactor

fluidized bedprocesswith mixer

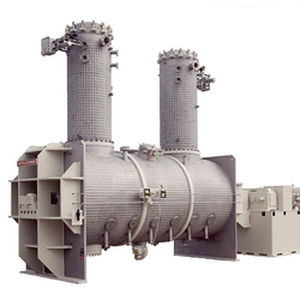

Agitated Vacuum Dryer The B&P Littleford Polyphase Reactor is a single apparatus designed to handle mixing materials of varying composition that may pass through phases of liquid to doughy, granular, or powder form as they dry. They also have the combined operational features of pressure and high vacuum, with effective heat transfer (heating or cooling). Units would be built to ASME Code Standards as well as differing standards across the globe. This Reactor operates according to the proven "fluidized bed" mixing principle whereby the materials being reacted are maintained in a mechanically fluidized suspended state, thus permitting the reacting mediums, gas-solid or liquid-solid, to achieve intimate contact with each other and the heat transfer surfaces. Advantages Of Agitated Vacuum Dryers The following results occur: Controlled reaction through effective heat transfer. Improved reactions rate. Increased efficiencies of reaction. Ability to complete an entire process in a single unit due to the ability to remove a volatile solvent. Reduced levels of solvent or diluent can be used due to the mixing action and the ability to handle phase changes. These are distinct advantages of an agitated vacuum dryer over an autoclave or slow moving ribbon vessel whereby the contact between the heating medium and the material is more by diffusion and is therefore slow, uncontrolled, and takes place at different times throughout the material. The basic design of the B&P Littleford Polyphase Reactor is a horizontal cylinder, which is top loaded and bottom discharged.
