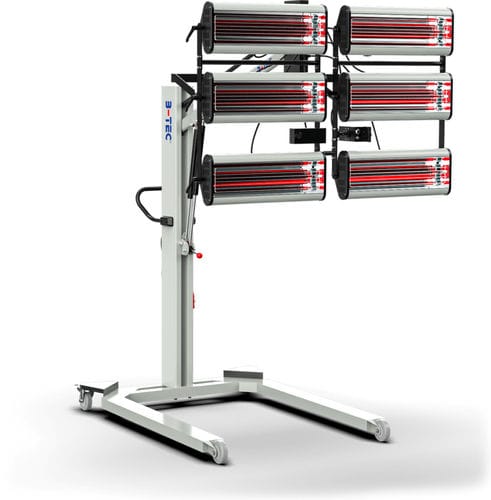

Infrared dryer IR-B06-T

continuousfor paintfor auto body

The short wave infrared dryer IR-B06/-T offers shortest drying times and high flexibility even for roof drying. With the only 10 cm high chassis, the dryer can be easily manoeuvred under lowered vehicles and thus enables drying of vehicle roofs. With six individually selectable cassettes, the dryer offers a drying area of up to 1000×1500 mm. For the best possible energy and cost savings, single cassettes can be activated for smaller drying areas. In addition, the IR-B06 is equipped with a permanent and automatic ultrasonic distance sensor to monitor the perfect distance to the object at all times. The IR-B06-T also has an additional adaptive temperature sensor with automatic power-off function to prevent e.g. overheating of sensitive plastic parts. Like all B-TEC IR dryer (except for IR-X), the IR-B06 also features 2-stage drying (flashlight / continuous drying) to heat the coating gently from the inside to the outside, thus preventing coating problems such as “boiling” and “biting”. In contrast to medium- or long-wave infrared radiation, short-wave infrared radiation penetrates the coating and thus heats it from the inside out. Complete sealing of the paint surface with wet paint layers still underneath is effectively prevented. Highlights Shortest drying times energy saving 400 V, 6.300 Watt very low frame height – only 10 cm 10 m power cable – high flexibility each emitter individually activatable automatic distance control using ultrasonics distance control display two-stage drying (Flashing / Continuous) easy moving due to ergonomic manoevering handles
