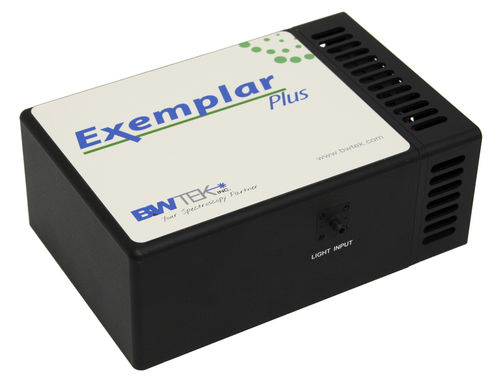

Fluorescence spectrometer Exemplar® Plus

processCCDUSB

Low Straylight Smart CCD Spectrometer The Exemplar® Plus is a smart CCD spectrometer optimized for low straylight by utilizing an aberration corrected concave holographic grating to minimize stray light. The Exemplar® Plus is a high-performance smart spectrometer utilizing an aberration corrected concave holographic grating, to minimize stray light. Its long focal length, coupled with a high quantum efficiency detector, provides superior data quality over the entire 190-1100nm spectral range. The Exemplar Plus features a high signal-to-noise ratio, making it ideal for low light level applications, and also features a built-in shutter allowing for dark scan measurements, even while illuminated. As a member of the Exemplar product line, it features on-board data processing and USB 3.0 communication. The Exemplar product line is optimized for multi-channel operation featuring ultra-low trigger delay and gate jitter. The Exemplar Plus is available in the following standard configuration: wavelength range of 200-850nm, 25μm slit, a LVF filter, a ruled grating (800mm/250nm), and a spectral resolution of 1.5nm. Custom configurations are available for OEM applications. Additional Features: High UV, Vis, and NIR Response 2048 Detector Elements Over 60% QE at 200nm Configurable Cooling Temperature (0° Default) Over 80% Peak QE Built-in Shutter Applications: Low Light Level UV to NIR Spectroscopy Raman and Fluorescence Spectroscopy On-line Process Monitoring LCD Display Measurement Biomedical Spectroscopy Gas and Water Analysis LED Characterization
