Fluorescence spectrometer Exemplar HT

RamanVis-NIRlaboratory

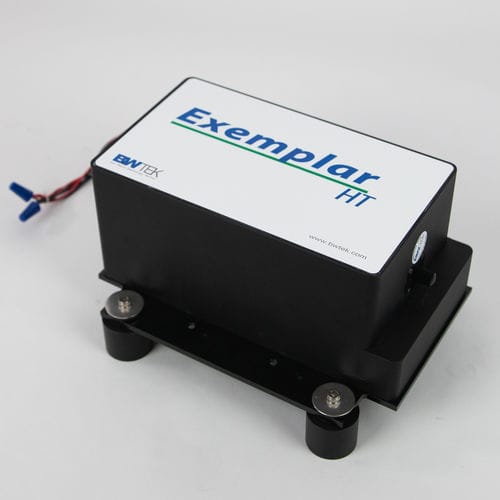

Exemplar HT Deep cooled high throughput spectrometer The Exemplar HT (model BTC667N) is a high-performance and high throughput spectrometer which features a low noise deep-cooled (-25oC) back-thinned (BT) CCD detector array with high dynamic range. The unique transmission-optics based spectrograph equipped with the high quantum efficiency detector, provides a superior data quality when configured for use in the 532-1100nm spectral range. The BTC667N offers very high signal-to-noise ratio, making it ideal for ultra low light level applications. Applications: - Raman and Fluorescence Spectroscopy - On-line Process Monitoring - BioMedical Spectroscopy - Gas and Water Analysis Features SMART: On-board processing including averaging, smoothing, and dark compensation SPEED: Acquires and transfers more than 140 spectra per second at an integration time of 6.3ms SIGNAL TO NOISE RATIO: Integration time of 30 minutes will give a SNR better than 540:1 Additional Features: High Vis and NIR Response 2048 Detector Elements Over 60% QE at 200nm (80% Peak QE) Software-configurable Cooling Temperature (-25° Default) Ultra Low Noise
