Hot water boiler HW3P

fuel oilgasthree-pass

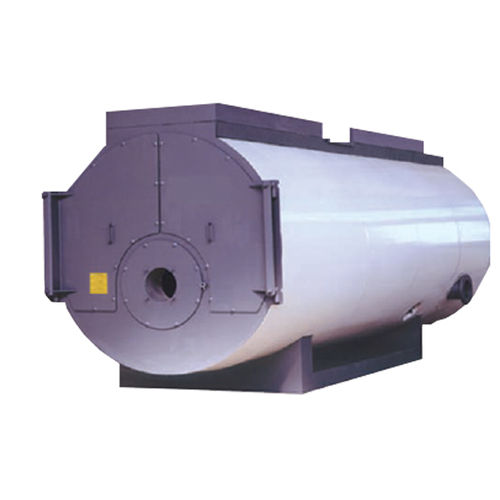

HW3P Hot Water Boiler is a full 3-pass fired heater designed for operation with Natural Gas, LPG, Light Fuel Oil and a variety of specialist Bio-fuels. The robust and proven configuration of the HW3-P guarantees reliable boiler performance in all industrial heating applications. HW3P is constructed with specially constructed burners for low NOx operation in full compliance with the Medium Combustion Plant Directive whilst still providing high operating efficiency and thereby very low overall emissions. The HW3P boiler from Babcock Wanson provides a maximum water outlet temperature of 106 °C and is fitted with a multi stage or fully modulating burner to suit the process load and provide very close control of process water temperature. HW3P Series Hot Water Boiler HW3P hot water boilers are available in 14 models with heat outputs between 1165 kW and 10 560 kW and with operating pressures between 5 to 8 barg depending on the model specification. The wide range of HW3P Hot Water Boilers ensures a size and heat output is readily available to suit the most demanding industrial process. Babcock Wanson can provide a complete solution for your hot water boiler requirements including the boiler shell with insulation and cladding, matched burner, multifunction control panel, all ancillary equipment including primary circulation and anti-condensation pumps, pressurisation equipment and a full package of heater house and process valves along with boiler commissioning. All equipment supplied is backed up by our local After Sales Service.
