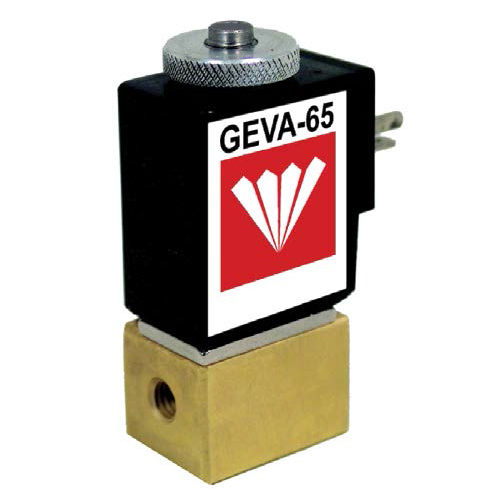

Direct-operated solenoid valve G65-A2-wayNCfor water
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, air, oil
- Body
- brass, stainless steel, aluminum, IP65
- DN
Min.: 0.8 mm
(0.031 in)Max.: 2 mm
(0.079 in)- Voltage
Min.: 12 V
Max.: 230 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)- Pressure
Min.: 5 bar
(72.5 psi)Max.: 30 bar
(435.1 psi)
Description
•Ports size: M5, #10 UNF
•Orifice size: 0.8 – 2.0 mm
•Body material: Aluminium, Brass, St. St
Function2 Way NC
Ports size M5, #10UNF
Orifice sizeSee table
Pressure rangeSee table
Kv (l/min)See table
Temperature rangeFluid :-10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact with media Main Valve: Aluminium, Stainless Steel AISI 316, Brass
Solenoid Operator Stainless Steel AISI 300 & 400 series, Brass
Seals: NBR, FPM (Viton®), EPDM
Media Air, water, oil
Coil voltage• Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
Standard protection classIP65 with connector
