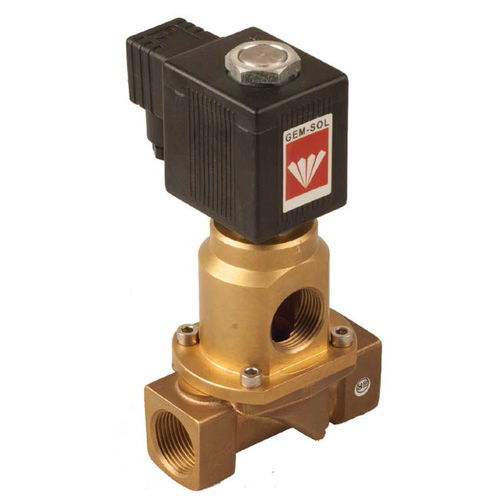

Direct-operated solenoid valve GEM-X3-wayfor waterair
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 3-way
- Medium
- for water, air, oil
- Body
- brass, IP65
- DN
Max.: 19 mm
(0.748 in)Min.: 8 mm
(0.315 in)- Voltage
Max.: 240 V
Min.: 6 V
- Temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 5 bar
(72.5 psi)Min.: -1 bar
(-14.5 psi)
Description
•Ports size: 1/4 ” – 3/4″ BSP, NPT
•Orifice size: 8.0 – 19.0 mm
•Body material: Brass
Function3 Way General purpose
Ports size1/4", 3/8", 1/2", 3/4" BSP & NPT
Orifice sizeSee table
Pressure rangeSee table
Temperature rangeFluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact with mediaMain Valve: Brass
Solenoid Operator: Stainless Steel AISI 300 & 400 series
Seals: NBR, EPDM
MediaAir, water, oil
Coil voltage• Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
Standard protection classIP65 with connector
* Option : IP68 (please refer to GEM-BP Coil)
