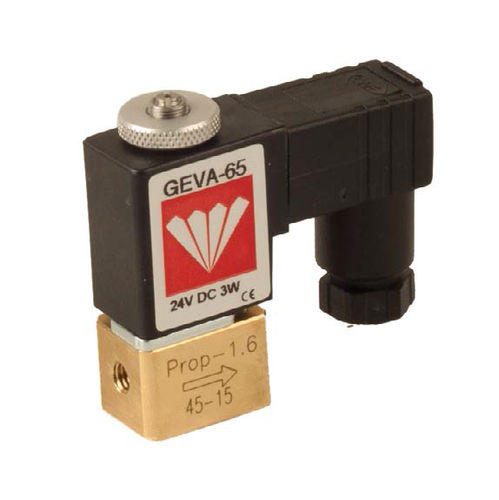

Proportional solenoid valve G65-PR2-wayNCfor water
Add to favorites
Compare this product
Characteristics
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, air, oil
- Body
- brass, stainless steel, aluminum, IP65
- Other characteristics
- proportional
- DN
Min.: 0.8 mm
(0.031 in)Max.: 1.6 mm
(0.063 in)- Voltage
Min.: 12 V
Max.: 230 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)- Pressure
Min.: 4 bar
(58 psi)Max.: 10 bar
(145 psi)
Description
•Ports size: M5, #10UNF, 1/8″ BSP, NPT
•Orifice size: 0.8 – 1.6 mm
•Body material: Aluminium, Brass, St.St
Function2 Way NC
Ports sizeM5, #10UNF, 1/8" BSP & NPT
Orifice sizeSee table
Pressure rangeVacuum - see table
Kv (l/min)See table
Temperature rangeFluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact with mediaMain Valve: Aluminium, Brass, Stainless Steel AISI 316
Solenoid Operator: Stainless Steel AISI 300 & 400 series
Seals: NBR, FPM (Viton®), EPDM (other, on request)
Guide rings: PTFE
MediaAir, water, oil
The control parameter is the current in the coil!
Operating currentMax. 1500[mA]
standard voltage 24V DC(=)
Electrical connectionPer DIN 43650-b, or
2 flying leads 18AWG (0.75mm2)
300 mm length
Standard protection classIP65 with connector
