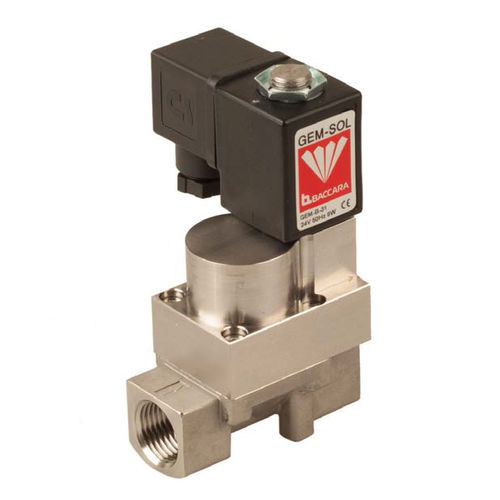

High-pressure solenoid valve GEM-HPpilot-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC, NO
- Body
- brass, stainless steel, IP65
- Other characteristics
- high-pressure
- DN
Max.: 25 mm
(0.984 in)Min.: 8 mm
(0.315 in)- Voltage
Max.: 240 V
Min.: 6 V
- Temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 60 bar
(870.2 psi)Min.: 1 bar
(14.5 psi)
Description
•Ports size: 1/4″ – 1″ BSP, NPT
•Orifice size: 8.0 – 25.0 mm
•Body material: Brass, St.St
Function2 Way NC, NO
Ports size1/4", 3/8", 1/2", 3/4", 1" BSP & NPT
Pressure rangeSee table
Kv (l/min)See table
Temperature rangeFluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact with mediaMain Valve: Brass, Stainless Steel AISI 316
Solenoid Operator: Stainless Steel AISI 300 & 400 series
Seals: Polyurethane, FPM (Viton®)*, EPDM*, PTFE
* The orifice seal is PTFE
Coil voltage• Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
Standard protection classIP65 with connector
* Option : IP68 (please refer to GEM-BP Coil)
