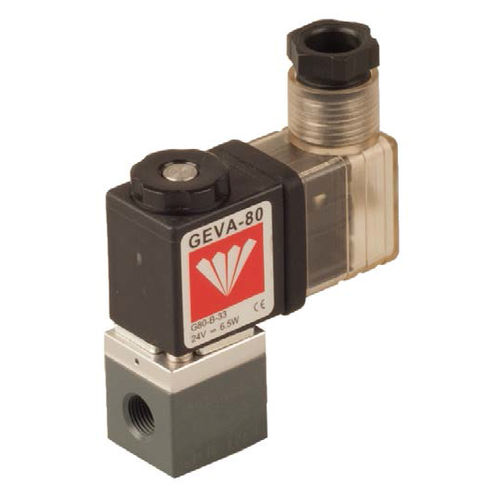

Chemical solenoid valve G80-CS2-wayNCNO
Add to favorites
Compare this product
Characteristics
- Ports/positions
- 2-way
- Function
- NC, NO
- Body
- plastic, IP65
- Other characteristics
- total isolation, for chemicals
- DN
4 mm
(0.157 in)- Voltage
Max.: 230 V
Min.: 6 V
- Temperature
Max.: 50 °C
(122 °F)Min.: 5 °C
(41 °F)- Pressure
Max.: 1 bar
(14.5 psi)Min.: -1 bar
(-14.5 psi)
Description
•Ports size: 1/8″ BSP, NPT
•Orifice size: 4.0 mm
•Body material: Plastic
Function2 Way NC, NO
Ports size1/8" BSP & NPT
Orifice size4 mm
Pressure range-1 to 1 bar
Note : for other pressures, please contact our technical sales department
Kv (l/min)4 l/min
Temperature rangeFluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact with mediaMain Valve: PVC
Solenoid Operator: Stainless Steel AISI 300 & 400 series, Brass
Seals: FPM (Viton®), EPDM
Typical applications• Chemical process
• Water treatment
• Analysis device et
Coil voltage• Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
Standard protection classIP65 with connector
