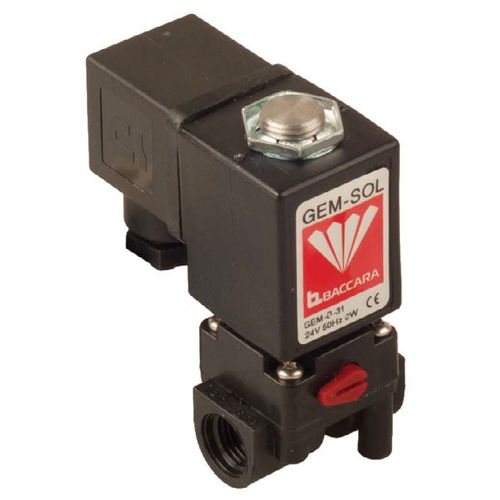

Chemical solenoid valve GEM-C2-wayNCNO
Add to favorites
Compare this product
Characteristics
- Ports/positions
- 2-way
- Function
- NC, NO
- Body
- plastic, IP65
- Other characteristics
- total isolation, for chemicals
- DN
4.5 mm
(0.177 in)- Voltage
Max.: 240 V
Min.: 6 V
- Temperature
Max.: 50 °C
(122 °F)Min.: 5 °C
(41 °F)- Pressure
Max.: 2.5 bar
(36.3 psi)Min.: -1 bar
(-14.5 psi)
Description
•Ports size: 1/4″ BSP, NPT
•Orifice size: 4.5 mm
•Manual override: NC: Plastic NO: Unavailable
•Body material: Plastic
Function2 Way NC, NO
Ports size1/4" BSP & NPT
Orifice size4.5 mm
Pressure rangeSee table
Kv (l/min)5 l/min
Temperature rangeFluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact with mediaManual override:
NC : Plastic
NO : Manual override is not available
Main Valve: Reinforced PPA
Seals: FPM (Viton®), EPDM, Silicone
Typical applications• Chemical process
• Water treatment
• Analysis device etc
Coil voltage• Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal
Standard protection classIP65 with connector
* Option : IP68 (please refer to GEM-BP Coil)
