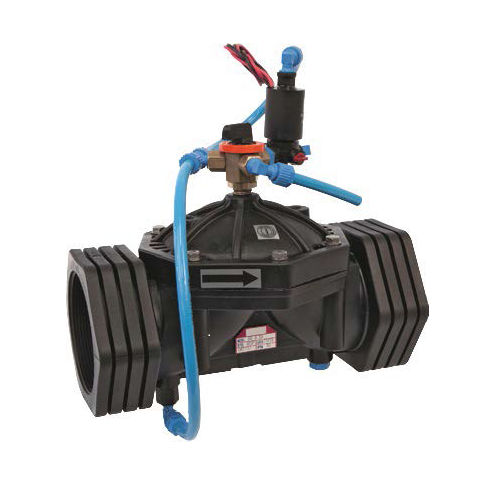

Diaphragm valve G500-EL

electrically-operatedfor controlfor water

•Ports size: 1-1/2″ – 4″ BSPT, NPT •Opening/closing: by 3W solenoid pilot valve •Applications : For water distribution •To remove operation of hydraulic valve by electric command Description G500-EL model valve is the hydraulic control valve operated by line pressure and designed to ensure opening/closing process by means of built-in 3 Way solenoid pilot valve controlled remotely with electric signal. Electric signal for solenoid pilot valve is ensured by means of a control device, time relay, main switch and PLC control units etc. Opening/Closing process may be realized easily thanks to manual control on solenoid pilot valve, depending on requirements, 24V AC 50Hz/60Hz or 12V DC, 9V Latch and 12V DC Latch normally open (NO) or normally closed (NC), solenoids coils may be used on main valve. Applications - Use G500-EL to remove operation of hydraulic valve by an electric command - Use G500-EL for water distribution Standards - G500-EL : 3 Way NO Solenoid, polyethylene plastic tubing system and nylon fittings n - - -- G500-ELM : 3 Way NO Solenoid, polyethylene plastic tubing system
