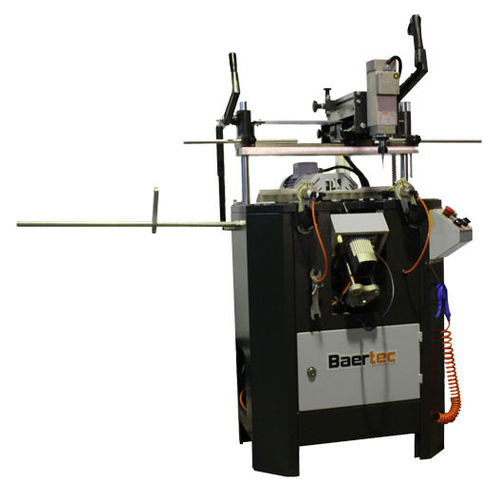

Water slot drilling router 2FR003-S

3-spindlefor PVCfor aluminum

General Specifications • Routing of door handle holes, lock cylinders and drain slots on PVC profiles. • Precise routing with minimal effort and simple operation. • Triple spindle drilling with manual feed for espagnolette holes on PVC sash profiles. • Drain slot milling at varying angles. • Frequency controlled (inverter) high speed motor. • Manual two stepped copy finger for 6 mm. and 8 mm. cutter diameters. • Possibility of template free depth adjustment and routing on two axis with measurement scale rod. • Pneumatic profile clamping. Optional • Left and right length stop system Technical Features • Power supply: 400 V, 3ph, 50-60 Hz • Total power output: 2.22 kW • Power output milling: 0,55 kW • Power output triple drill: 1.1 kW • Power output router: 1,50 kW • Router spindle speed: 12,000 r.p.m. • Drill spindle speed: 930 r.p.m. • Routing capacity: 250 x 100 mm. • Stroke: 100 mm. • Max. profile section dimensions: 110 mm x 100 mm. • Air pressure: 6-8 bar
