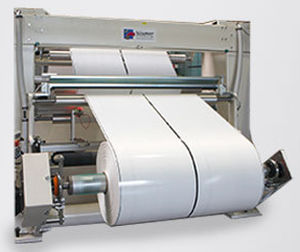

Multi-purpose slitter-rewinder RS-R
for papercompactsingle-shaft

multi-purpose slitter-rewinder
multi-purpose slitter-rewinder
Add to favorites
Compare this product


Characteristics

Transformed product
multi-purpose, for paper
Options
compact, single-shaft
Working width

Min.: 500 mm
(20 in)

Max.: 2,000 mm
(79 in)

Speed

Min.: 250,000 mm/min
(164 in/s)

Max.: 600,000 mm/min
(394 in/s)

Description

Application: Rewinding of large rolls with forward and reverse function and slitting to min. width of 100 mm. For films, laminates, met. films and paper. Special Features: reverse function to maintain print direction with full edge control function for one web slitter for razor blade cuts for min. slitting width of 100 mm incl. side trim cut and suction nozzles for trim removal slitting also possible when in reverse mode shared winding on one shaft (with synthetic friction ledges) and friction control for different web tensions across winding width easy finished roll removal from original unwind position winding characteristics with up to 4 selectable basic values easy placing of winding shafts into the bearing caps multifunctional extendable compact design and robust construction rapid installation and commissioning Clearly arranged and easy to operate Nearly maintenance free

Catalogs

RS-R
RS-R
2 Pages
