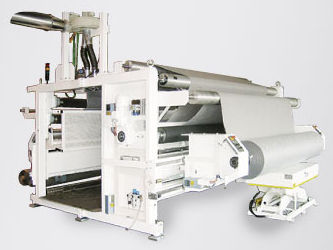

Compact slitter-rewinder URW-J

multi-purposefor paper

Application Rewinder with max. 4000 mm working width and slitter for min. 150 mm slitting width. For film, laminates, woven, non-woven and paper. Advantages clearly arranged and easy to operate lift table for easy roll insertion of parent rolls web width up to 4000 mm electro-motive positioning of shaftless chucks for various roll widths, electro-motive unwind drive alternatively a winding shaft can be simply inserted (adaptors in chucks) for slitting operation short web tracks razor blade cut 1 stationary rewind position, manual chuck positioning laser light to position the chucks of un- and rewind to form an inline web edge finished roll removal, optional with movable lift table compact design and robust construction, rapid installation, low space requirements easy handling and low maintenance requirements Options: web dancer for tension control edge control in-line print deck adaptor for core diameter 3“ to 6“ elektromotive positioning of chucks at rewinder
