Capstan winch with combustion engine W series
for cablespulling

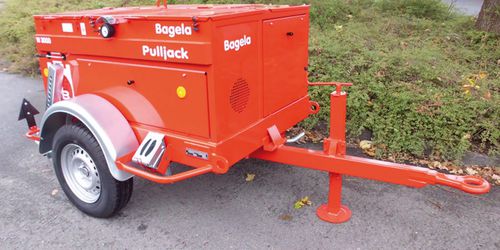

Capstan winch with combustion engine - W series - Bagela Baumaschinen GmbH & Co. KG - for cables / pulling
Capstan winch with combustion engine - W series - Bagela Baumaschinen GmbH & Co. KG - for cables / pulling
Capstan winch with combustion engine - W series - Bagela Baumaschinen GmbH & Co. KG - for cables / pulling - image - 2
Add to favorites
Compare this product


Characteristics

Operation
with combustion engine
Type
for cables
Application
pulling
Capacity

2,549.3 kg, 3,059.2 kg
(5,620.2 lb, 6,744.4 lb)

Speed

40,000 mm/min
(26.2 in/s)

Cable diameter

10 mm
(0.39 in)

Cable length

2,700 mm
(106.3 in)

Motor power

12 kW
(16.32 hp)

Weight

1,100 kg
(2,425.085 lb)

Description

The winches of this series are ideal for all kind of cable laying projects, seasonal contracts in telecommunication applications and electricity supply cable network maintenance where reliability, mobility and low space requirements are essential. A pulling force limit-switch stops line pull as soon as the preselected pulling force is reached. During pull the current force will be indicated on a gauge. Tractions in angles up to 90° (e.g. in manholes) can be enabled by a deflection boom. It will be connected to the swivel pulley at the rear of the winch. The winch is totally closed completely during operation; only the panel has to be lifted up. The complete power pack including operation panel is frame mounted and fully enclosed by a lockable soundproofed steel sheet casing with an overall length, including tow-bar, of just 2700 mm. Technical Data Standard design: W 2500 (for Europe only) • - Single-axle chassis with overrunning and automatic reversing brake system, straight tow-bar with ball type coupling, 12 V lighting system and TÜV-approval • - Lockable, soundproofed sheet metal hood • - measuring clockwork with adjustable pull limiting switch • - Operating hour counter • - Petrol engine with hydrostatic gear system • - Twin capstan system with rope storage drum and 500 m rope • - lifting hook • - Painting: traffic red RAL 3020 Extras: (on request) • - other types of engines, painting or rope lengths • - Telescopic deflection boom W 3000 • - Single-axle chassis with hand brake, straight tow bar with ball coupling, no lightning system and no TÜV • - lockable soundproofed sheet metal hood • - measuring clockwork with adjustable pull limiting switch • - Operating hour counter
