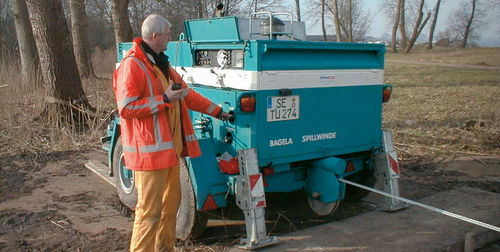

Hydraulic winch RW series

diesel enginepipe renewal

The winch is powered by a diesel engine and is equipped with a steplessly controlled hydrostatic gear. Every Bagela Pipe Renewal Winch is outfitted with automatic hold-on system. The required line pull can be pre-selected by control of the hydraulic oil pump (pressure/flow control) which keeps the winching rope in permanent tension even at varying pull resistance. This system ensures full self-control of the winch and is more effective than manual control of line speed. The line pull may be increased until the hydraulic overflow valves are activated. The winch itself is consisting of a twin capstan drive and rope storage drum with automatic rope stacking device. A rope protecting, grooved double capstan system generates the whole pulling force. For operation the sheet steel mades and soundproofed housing remains closed, only the cover of the operation panel has to be opened. The winch is to be retained by two telescopic and pretensionable rear props and a deflection boom against an end trestle. Winch Control Serial outfit: - Optional outfit: Hydr. Pulling force indicator - Remote control Engine rpm - Thermal printer: Gear speed shifter - PC 310, touch screen indicating: Pulling force pre-selection - •Pre-selected pulling force Rope speed - •Actual pulling force Rope: In/Stop/Out - •Length (progress bar) Emergency stopp - •Speed Elepsed hour counter - Digital recording, data outup on USB port Extras: (on request) Other type of engines, chassis, paintings and more rope if needed, telescopic deflection boom Dimensions and weights may differ if extras are fitted.
