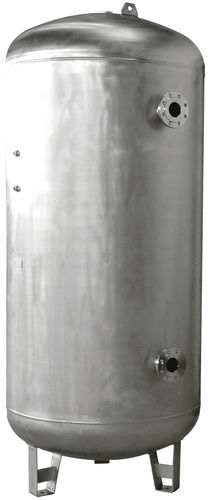

Storage tank VEC00982oilfor waterfor compressed air
Add to favorites
Compare this product
Characteristics
- Function
- storage
- Product applications
- oil, for water, for compressed air, oxygen
- Material
- carbon steel, galvanised steel
- Type
- pressure
- Applications
- industrial, for agricultural applications, for water treatment, for the automotive industry, storage, low-pressure
- Other characteristics
- vertical
- Capacity
Max.: 10,000 l
(2,641.721 gal)500 l, 1,000 l, 1,500 l, 2,000 l, 3,000 l
(132.086 gal, 264.172 gal, 396.258 gal, 528.344 gal, 792.516 gal)Min.: 5 l
(1.321 gal)- Pressure
Max.: 42 bar
(609.2 psi)11 bar, 16 bar, 21 bar
(159.5 psi, 232.1 psi, 304.6 psi)Min.: 8 bar
(116 psi)
Description
Material: carbon steel
• Fluid content: compressed air / nitrogen / argon / helium / water
/ oil / oxygen (Group 1 - hydrogen excluded)
• Finishing: internal and external hot-dip galvanization;
external Ral 5015 blue paint (standard) and internal RAL 5005
corrosion-resistant ALM paint
• Upon request: inspection ports - 100x150 mm handhole
(from 1000 to 3000 lt)
