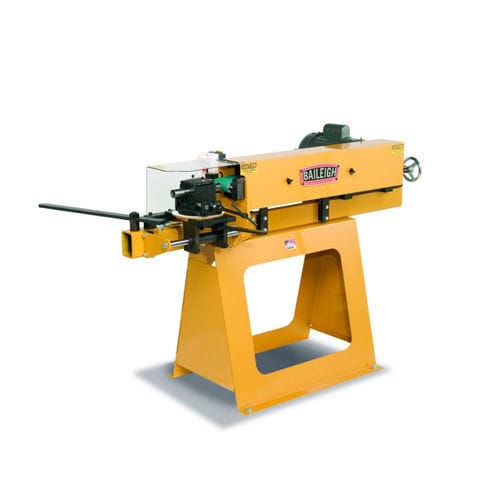

Pipe notching machine TN-400

tube

The TN-400 abrasive tube notcher uses a self-centering vise to guarantee the right belt positioning every time. This machine will help you perfectly cope thin wall tubing. Features Made in the USA. 3 hp motor runs on 220-volt single-phase power. Ideal for coping the ends of .75” OD to 2” OD tubing or pipe. Notches at almost any angle up to 60°. 79” x 4” belt spins at a speed of 5420 feet per minute. V-block design of the vise jaws keeps the tube or pipe centered with the notching spindle and holds it securely. Vise carriage rides on a smooth Thompson® shaft assembly during the notching cycle. Pivoted control lever presses the material press into the belt. Quick-change tooling system allows you to swap out the mandrel in seconds. Comes standard with 1.25” pipe mandrel. Specifications Belt Speed (FPM) - 5420 Model Number - TN-400 Motor (HP) - 3 hp Notch Capacity (in./OD) - .75" - 2" Prop 65 - Cancer and Reproductive Harm Shipping Weight (Lbs.) - 480 Volts - 220 Product Lease Price - 174
