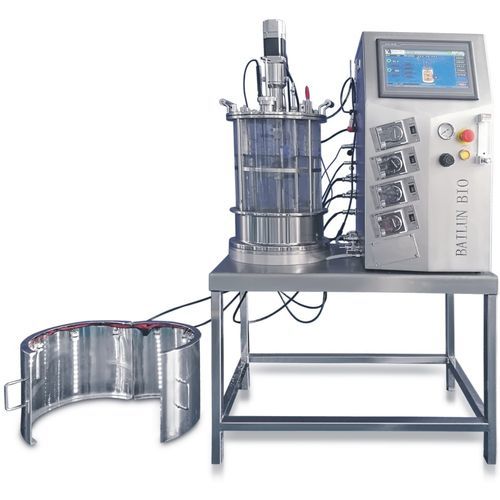

Batch photobioreactor BLBIO-GCL

laboratorymanualwith magnetic stirrer

The lighting bioreactor in the BLBlO-GCL series is suitable for culture of algae cells and tissues. Suitable for culture of microbes with low shear force.It adopts a long and narrowtank with a total volume of 3.6L and tank cover specification of 115NW. lt is provided with specially designed low positioncooling jacket and outer casing type light source to ensure the transmission effect of lighting. It has various types of mixingpaddles for selection such as flat paddle, bevel paddle and turbine paddle,The light intensity can be adjusted freelyaccording to the percentage.When working with the BLBlO-/3.1 software, it can simulate various lighting modes, such asday and night alternation. Control system: 10in touch screen , Siemens PLC control system with control parameters (stirring, pH, DO, temperature, feeding, gas etc.), data analysis, data logging, data output and printing, overrun alarm, language switching and other functions. lnternal or external light sources with adjustable intensity can be provided. The culture of marine organisms, especially the cells and tissues of microalgae and macroalgae, is a research focus all overthe world. Among them, some secondary metabolites such as marine terpenoids are widely studied secondary metabolites.Bailun has nearly 20 years of research experience in the lighting culture and photoreaction field.The lighting bioreactor is aresult of these research experiences.
