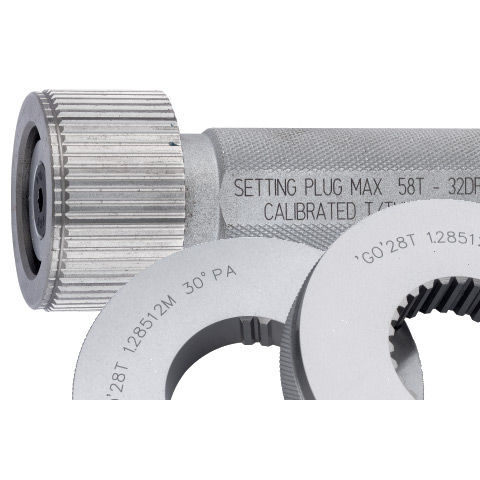

Spline test gauge 28T 1.2851M 30° PA series, 58T-32DP-37.5°PA

Spline Gauges is the world’s leading manufacturer of spline gauges and master gears. Its customers include leading global companies and their suppliers in the automotive, defense and aerospace industries, their OEMs and the precision engineering companies which support them. Go and No Go spline rings, plugs and master gears are their speciality. Together, we also offer: Taper master plugs, straight/helical Gear Artifacts Spline plug and ring, straight/helical Helical and spur master gears Spline indicator ring and plug gauges FEATURES: Vast unmatched experience backed by around 500 standards from across the world, ensures the gauges are designed to the correct standards and manufactured to the correct tolerances Gauges are evaluated on a Gear Analyzer, which gives inspection charts detailing the errors Profile errors and tooth alignment are maintained within the allowable tolerance, resulting in the accumulative gauge variation being well within the allowable percentage variation of component tolerance, which can be matched by very few gauge manufacturers Low accumulative gauge variation results in gauge longevity, more tolerance for manufacturing, very low probability of component rework/rejection, leading to lower gauging cost/component, thus paying back the seemingly higher initial price Gauges are certified by UKAS accredited laboratory Equipped with latest CNC machines Small rings are wire-cut for better quality and stability
