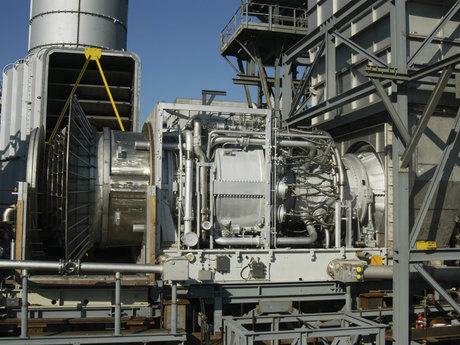

Gas turbine Frame 9/1E

single-shaft

Single-shaft gas turbine with proven reliability and energy efficiency Benefits Mean time between maintenance (MTBM) of 32,000 factored fired hours (FFH) or 1,300 factored fired starts (FFS) Capable of single-digit NOx emissions Can burn a wide range of gas and liquid fuels, syngas option, low emissions, grid support, peaking, cyclic and base load modes Features Single-shaft engine with hot-end drive, 17 axial compressor stages, and 13.1:1 pressure ratio 14 combustion chambers with reverse-flow STD/DLN1+ combustion system (single-digit NOx emissions) Three turbine stages with air-cooled first and second stage nozzles and buckets Applications Simple cycle and cogeneration Combined cycle with steam turbine LNG Overview This turbine's success in the 100-150 MW class stems from an excellent fit in a wide variety of applications with many customers—including oil and gas, petrochemical, industrial, and electric utility. DLN1+ specification. At ISO conditions with natural gas fuel, ambient temperature 15ºC, no inlet or exhaust losses, sea level, 60% relative humidity. Package dimensions include driven equipment. Proven With more than 700 units installed worldwide, the Frame 9/1E provides proven energy efficiency, availability, reliability, and maintainability. Fuel flexibility It can operate with syngas/process gas, distillate oil, crude/residual, or natural gas in a variety of applications—and it can burn fuels with high hydrogen content (refinery and petrochemical).
