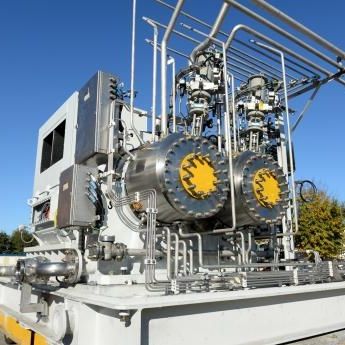

Pipe expander

For higher power levels and pressure ratios with lower maintenance requirements in oil and gas and energy recovery applications Benefits High power levels while performing both at extremely high and cryo operating temperatures and achieving great pressure ratio Can handle all pure or mixed natural gas, and petrochemical products with liquid up to 35% of weight at discharge We can do standard testing to ASME PTC10, Type 2 with option for full-load string test with up- or downstream compressors Features Aerodynamics and multistage arrangement based on specific process needs to provide high pressure ratios or high flow rates Hydraulic, pneumatic or electric actuator control patented multilink IGV to guarantee precise control up to 130% design flow Totally sealed train, single-shaft with high speed generator on magnetic bearing available for low power application (<1 MW) Applications Cryogenic gas treatment and dew point control applications Petrochemical (syngas, H₂ rich process) Waste-to-value applications (LAES, pressure let-down, geothermal, waste-heat recovery) Our turboexpander-generator designs respond to specific industry needs for increased capacity, reduced costs, and maximized reliability in a wide range of fullstream and low carbon applications. Our fleet ranges from 0.3 to 20 MW with a proven record of performing at extreme temperature and pressure conditions, delivering the highest power level. Energy recovery from heat injection and pressure
