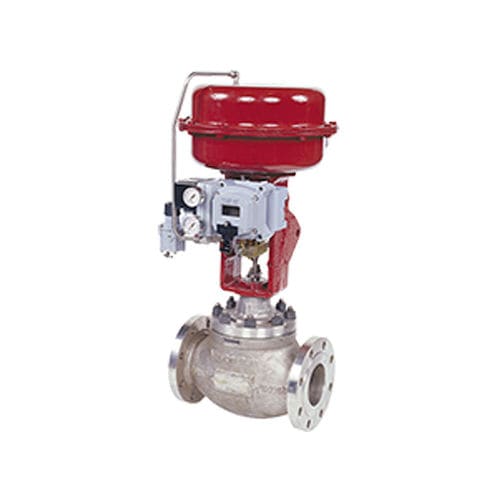

Globe valve 21000

hydraulically-operatedfor controlshut-off

Ratings & Connections Flanged: ANSI 150 – 2500, UNI-DIN 10 - 400 Welded: BW or SW Actuators model 87/88 multi-spring diaphragm; cylinder Trim single seat plug top guided; Lo-dB and anti-cavitation trims, single or double stage are available Inherent Characteristics linear or equal percentage Description Versatile Baker Hughes offers the Masoneilan 21000 Series heavy top-guided globe valve for a wide range of automated process control applications. The 21000 Series product line features a single-ported design configuration, which permits numerous trim, actuation, and instrumentation solutions including: Lo-dB* Noise Attenuation Anti-Cavitation Reduced Capacity & Low Flow Trim Cryogenic Configuration Tight Shutoff Environmental Packing Advanced Digital Positioning & Control Reliable Rugged top-guiding of the plug promotes maximum valve stability under adverse conditions. The inherent ruggedness of the 21000 Series is field-proven, with thousands of units installed in process control plants around the world operating successfully with various fluids under mild and extreme conditions. High Performance The combination of trim designs, actuator stability, shutoff capabilities, and superior valve positioning offers optimum control performance. The 21000 Series is also available in various materials, pressure ratings, and end connections offering a complete high-performance valve platform.
