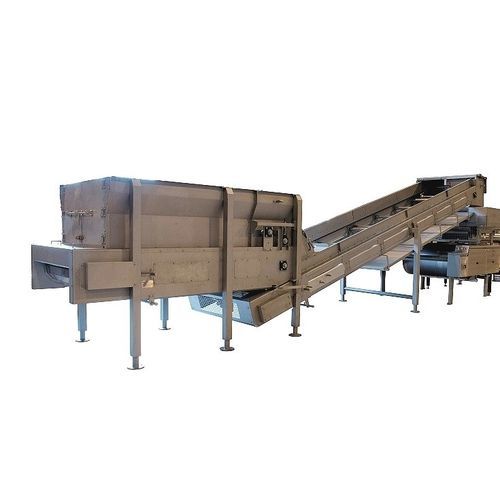

Live bottom bin

The Live Bottom Bin receives the mass from the Mixer and provides a metered feed to the Feeder Spreader unit via an Elevating Conveyor. Stainless steel receiving hopper Reversible stainless steel 100mm pitch slat conveyor Variable speed, inverter controlled outboard mounted AC geared motor conveyor drive Breaker unit at the discharge of the receiving hopper with variable speed, inverter controlled AC geared motor drive. A spray bar can be located above the breaker unit to assist unit cleaning Guarding around the breaker unit constructed of stainless steel mesh A scraper situated underneath the hopper slat conveyor Interlocked access doors allowing hopper access for cleaning Spray nozzles and pipework allowing for slat conveyor cleaning Level probe for live bottom bin Clean-in-place Wash Manifolds to suit underside return of band / belt c/w auto shut off valves The Live Bottom Bin receives the mass from the Mixer and provides a metered feed to the Feeder Spreader unit via an Elevating Conveyor. Stainless Steel slat conveyor Outboard mounted AC geared motor conveyor drive (variable speed – inverter controlled) Motor outside of product area Stainless steel support structure
