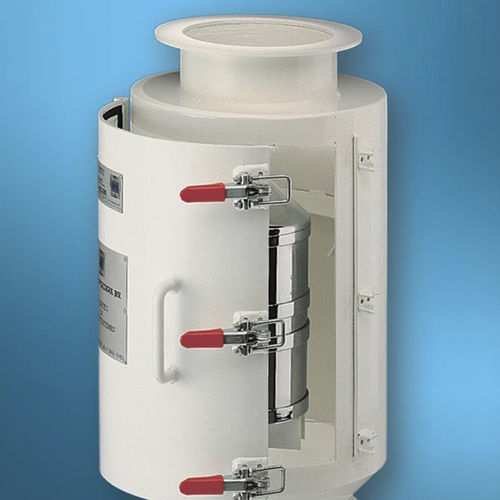

Magnetic tube separator 26 series

particlefor the chemical industrystainless steel

Under normal circumstances Bakker Magnetics provides a life-time guarantee on the applied ceramic magnets. Bakker Magnetics supplies a complete installation- and user manual of Tube magnets in Dutch-, English- or German language (to be specified with order). Execution: Tube magnets type PM (/C, /S, /K) Sturdy construction Permanent magnetic Manual cleaning Standard fitted with flat undrilled flanges Housing: Steel S235 or Stainless steel 1.4301 Surface treatment: Inside anti-corrosion primer (steel housing) Outside painted blue RAL5015 Magnetic part: Permanent ceramic magnets quality BM7 Permanent Neodymium magnets quality BM35 Neodymium version always in combination with a stainless steel housing. Also available: Execution without outlet cone for a smaller height (PM/C). Sanitary execution with EN 1092-1 flanges ,for hygienic circumstances (PM/S). Separate magnetic cores (PM/K). Special dimensions and / or flanges (like Jacob flanges).
