Cake depositor

muffinsfor semi-liquidsfor chocolate

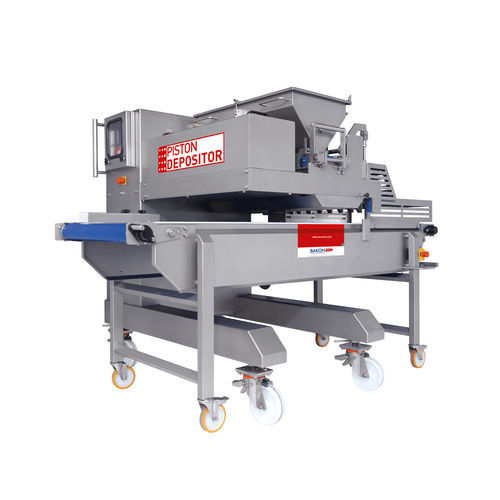

The PISTON DEPOSITOR is an easy to manage and adaptable depositor for fast and precise depositing of various semi-liquid fillings. This machine is designed to faultlessly process a great variety of products; especially suitable for depositing products with pieces, like nuts, raisins, fruit, chocolate, etc. Various models and options make the PISTON DEPOSITOR very suitable to use both as stand-alone machine and inline (to build or expand your production line). Of course we also offer customized solutions to meet all your needs! Key features Robust and heavy duty machine. Easy to operate. Continuously variable dosing volume. Built on stainless steel C-frame. Dosing bridge with pneumatic up and down movement. Working width from 400 up to 800 mm. Executed with 2 rigid and 2 swivel casters. Wide range of parameters. Operation Products to be deposited are drawn in from the hopper by the pistons in the cylinders. The piston presses the product from the cylinders to the dispensing opening. Each depositing head has its own nozzle. This enables you to deposit products with pieces such as chocolate, nuts, fruit, etc. The standard depositing volume is variable and is easily adjustable by means of the full colour touch screen. The PISTON DEPOSITOR is a servo operated machine and complies with the latest technology. The electrical cabinet is integrated and the machine is for safety reasons standard equipped with a safety rack over the depositing cylinders and the out-feed of the machine. Benefits Easy to operate Stainless steel Movable Economical HACCP
