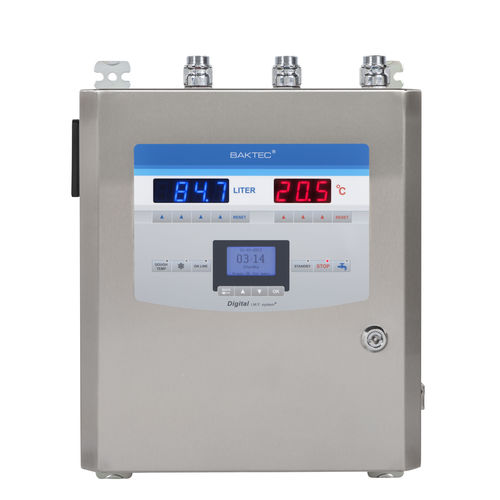

Water mixing and metering unit B3 CERES Pro

volumetricfor the food industrydigital

Baktec’s CERES Pro models have a user-friendly and surveyable installation- and information menu, operated by means of an LCD display. It is easy to request information, such as: batch history (time, litres, temperature) and batch progress. The batch history is also saved on a micro SD-card. These models are equipped with the Injection-Mixing-Flow (I.M.F.) system and automatic pre-run. The CERES Pro’s have totally renewed hard- and software, equipped with the latest innovative techniques and parts. Easily connected to a process computer or PLC and supplied standard with interfaces RS 232 and RS 485. Other interfaces such as Profibus and Ethernet are easily integrated. The dosing time can be pre-programmed. With one press of button, only the coldest water available will be dosed. The automatic standby saves up to 80% energy! Based on an extensive error analysis, most common problems can be easily solved. SPECS B3 CERES Pro For hot, cold and chilled water (3 inlets). 24 VDC adjustable control inlets and outlets for controlling other equipment. Dosing range 0.1 – 999.9 litres, adjustable on 0.1 litre. Temperature range of 1 – 80°C, adjustable on 0.1°C. Water capacity (depending on the pressure) 25 l/min Dimensions (l x w x d): 40 x 36 x 14 cm R½” connections, 220/230 V, 50/60 Hz The advantages of our equipment, beside the above mentioned, is the special button for dosing chilled water; only the coldest available water is being dosed; especially useful in the summer.
