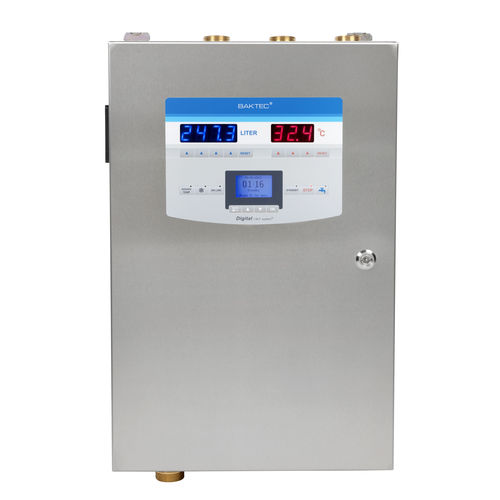

Water mixing and metering unit B5 CERES Pro

volumetricfor the food industrydigital

The CERES Pro models from Baktec have a user-friendly and surveyable installation- and information menu, operated by means of an LCD display. It is easy to request information, such as: batch history (time, litres, temperature) and batch progress. The batch history is also saved on a micro SD-card. These models are equipped with the Injection-Mixing-Flow (I.M.F.) system and automatic pre-run. The CERES Pro’s have totally renewed hard- and software, equipped with the latest innovative techniques and parts. Easily connected to a process computer or PLC and supplied standard with interfaces RS 232 and RS 485. Other interfaces such as Profibus and Ethernet are easily integrated. The dosing time can be pre-programmed. With one press of button, only the coldest water available will be dosed. The automatic standby saves up to 80% energy! Based on an extensive error analysis, most common problems can be easily solved. SPECS B5 CERES Pro - INDUSTRIAL For hot, cold and chilled water (3 inlets). 24 VDC adjustable control inlets and outlets for controlling other equipment. Dosing range 0.1 – 999.9 litres, adjustable on 0.1 litre. Temperature range of 1 – 80°C, adjustable in steps of 0.1°C. Water capacity (depending on the pressure) 80 l/min Dimensions (l x w x d) : 60 x 40 x 14 cm R1″ connections, 220/230 V, 50/60 Hz
