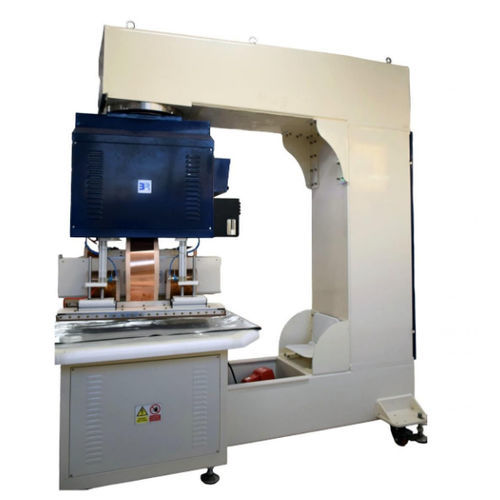

High-frequency welding machine BR15

manualfor PVCpneumatic

BR15 Twins (double head) welding machine was produced on special demand of one our customer and it is exclusive without any similar on market. This machine includes two presses that share the same high-frequency generator and unique control unit that controls both presses. One press is with cutter-producing defined shapes (lifejackets, for example) while another press has welding rod and it is suitable for little-medium welds such as banners, curtains, awning, marine barriers, etc. This machine is the right choice for those customers who are engaged in manufacturing a wide range of PVC products: instead of two machine (each one dedicated for the appropriate product group) customer can acquire ou Twins model, which is economic. Technical performances – BR10Twins Power efficiency - power from generator to electrode - 10kW Power Input - Maximum power installed - 13kW Main fuse - 32A Power supply (voltage) - Three phase, 400V ± 3%; 50Hz Working frequency 27.125 MHz ± 0.6% Pneumatic press drive - 750 kg Protection against discharge - Standard SCR System for hand protection - Balacchi HF Security System Management and Control - Manual or touch screen programmable PLC Total weight - 2000 kg
