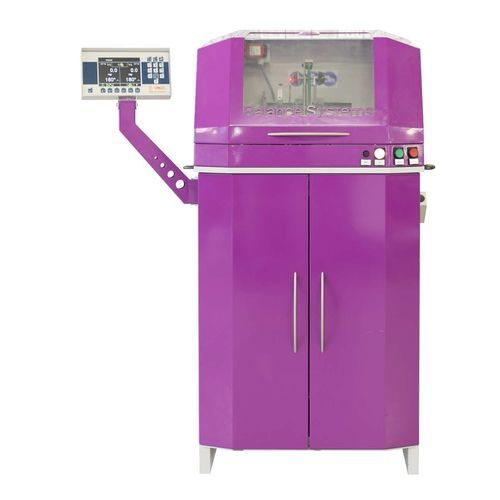

Vertical balancing machine TRB3000dynamicfor rotorsfor turbocharger
Add to favorites
Compare this product
Characteristics
- Orientation
- vertical
- Type
- dynamic
- Applications
- for rotors, for turbocharger
- Rotational speed
Max.: 2,800 rpm
(17,593 rad.min-1)Min.: 200 rpm
(1,257 rad.min-1)- Weight on rotor
0.5 kg
(1.1 lb)
Description
• The TRB3000 balancing machine has been designed for balancing turbocharger rotors in all the possible configurations: turbine wheels, compressor wheels, and assembled rotors.
• It is a compact machine equipped with a measuring electronic unit and a VM25 control panel.
• The machine is extremely accurate. Unbalance measurement and correction on two planes.
• Compact design
• High measuring precision
• User friendly
• Hard bearing support
• Loop belt drive
