AC servomotor SSBSM series
brushlessIP67washdown

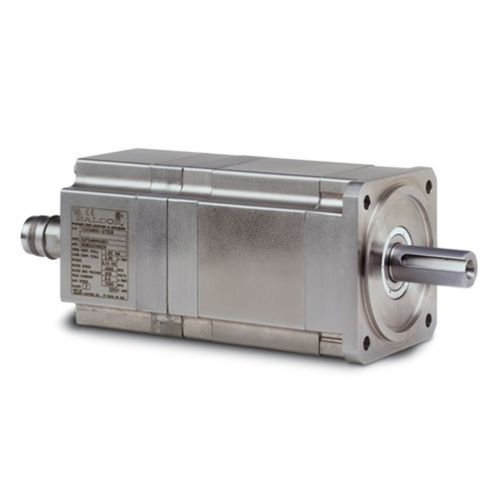

AC servomotor - SSBSM series - Baldor Electric Company - brushless / IP67 / washdown
AC servomotor - SSBSM series - Baldor Electric Company - brushless / IP67 / washdown
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
brushless
Protection class
IP67, washdown, rugged, sealed
Configuration
stainless steel, TENV
Applications
for industrial applications, packaging machine, for the food industry, for the pharmaceutical industry, heavy-duty
Other characteristics
low-inertia, motion control, UL certified
Power

0.19 kW, 0.26 kW, 0.64 kW, 0.74 kW, 1.76 kW
(0.258 hp, 0.354 hp, 0.87 hp, 1.006 hp, 2.393 hp)

Torque

0.9 Nm, 1.9 Nm, 3.3 Nm
(0.6638 ft.lb, 1.4014 ft.lb, 2.434 ft.lb)

Rotational speed

4,000 rpm
(25,132.74 rad.min-1)

Description

ABB's totally stainless steel SSBSM series of AC brushless servo motors are designed for industrial applications such as food, liquid, pharmaceutical, and other motion control applications requiring washdown, and high hygiene motors. They may be applied in harsh, corrosive environments. These motors are designed to handle IP67 and withstand 1500 psi washdown conditions. These stainless steel servo motors are offered in standard and low inertia designs for best machine inertial matching. Included in this quality design are lazer etched nameplate, FDA shaft seal, environmental protected stator with premium moisture resistant wire, and internal thermal over temperature protection. ABB’s SSBSM products are designed to be durable. Features • All stainless steel construction 304 housing, 416 shaft – suitable for pharmaceutical and food processing • Watertight – sealed to IP67 and 1500 psi for heavy duty washdown applications • Non-corrosive housing – provides protection in harsh environment • FDA shaft seal - complies with food industry standards • BISSC – complies with Baking Industry Sanitation Standards Committee • Laser etched nameplate – no areas for bacteria to cling • Potted stator – provides environmental protection and high voltage protection • UL rated for 130 C rise – to provide extra high insulation/safety • Internal thermal switch – supplies safeguard against overheating • Superior bearing protection with Mobile Polyrex™ EM grease to provide four times greater life • Standard and low-inertia models – choose the better option for the application BISSC/UL/CSA/CE agency approvals Common industries • Food and beverage • Manufacturing
