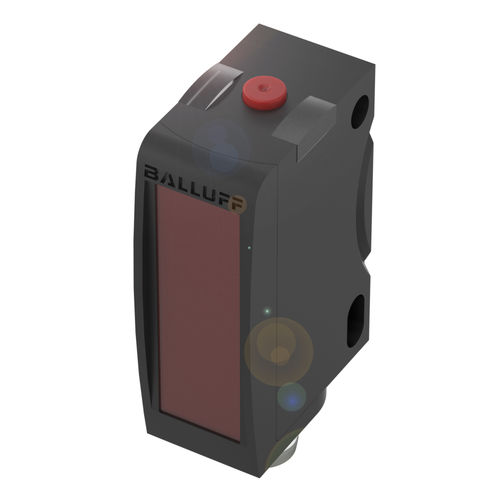

Diffuse photoelectric sensor BOS01KYrectangularLEDcompact
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse
- Housing
- rectangular
- Type of beam
- LED
- Other characteristics
- compact
- Maximum range
Min.: 1 mm
(0 in)Max.: 200 mm
(7.9 in)
Description
Series
6K
Dimension
12 x 41.5 x 21.6 mm
Interface
PNP normally open/normally closed (NO/NC)
Principle of operation
Photoelectric sensor
Principle of optical operation
Diffuse sensor, triangulation
Special optical feature
Background suppression
Beam characteristic
Focus, typical at 50 mm
Light type
LED, red light
Light spot size
5 x 5 mm at focal point
Connection
Connector, M8x1-Male, 4-pin
Housing material
ABS
Material sensing surface
PMMA
Operating voltage Ub
10...30 VDC
Approval/Conformity
cULus
CE
WEEE
