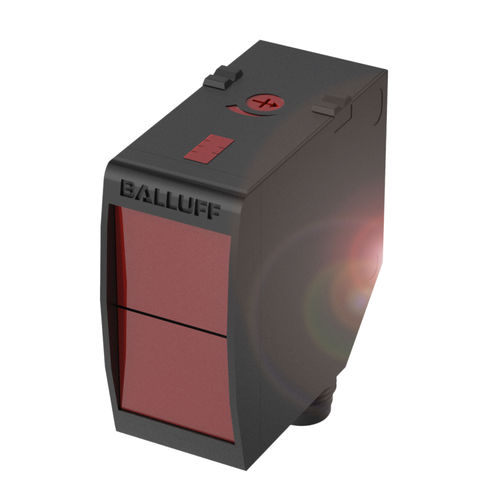

Diffuse photoelectric sensor BOS0178rectangularLEDcompact
Add to favorites
Compare this product
Characteristics
- Sensing mode
- diffuse
- Housing
- rectangular
- Type of beam
- LED
- Other characteristics
- compact
- Maximum range
Min.: 3 mm
(0.1 in)Max.: 800 mm
(31.5 in)
Description
Special characteristics
Washdown
Series
23K
Dimension
23 x 51 x 52.4 mm
Interface
PNP normally open/normally closed (NO/NC)
Principle of operation
Photoelectric sensor
Principle of optical operation
Diffuse sensor, triangulation
Special optical feature
Background suppression
Beam characteristic
Focus, typical at 500 mm
Light type
LED, red light
Light spot size
15 x 15 mm at focal point
Connection
Connector, M12x1-Male, 4-pin
Housing material
PC
ABS
Material sensing surface
PMMA
Operating voltage Ub
10...30 VDC
Approval/Conformity
Ecolab
CE
cULus
WEEE
