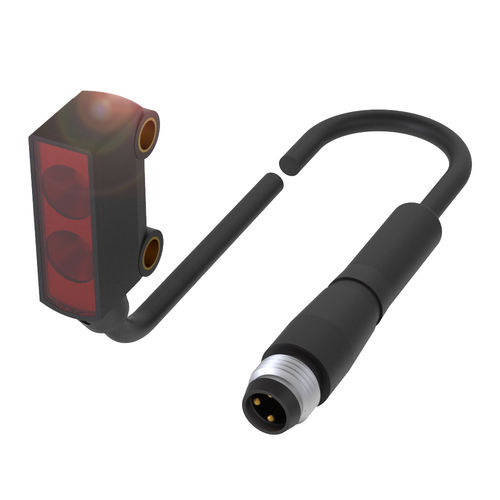

Diffuse photoelectric sensor BOS021C
rectangularLEDcompact

Diffuse photoelectric sensor - BOS021C - Balluff GmbH - rectangular / LED / compact
Diffuse photoelectric sensor - BOS021C - Balluff GmbH - rectangular / LED / compact
Diffuse photoelectric sensor - BOS021C - Balluff GmbH - rectangular / LED / compact - image - 2
Add to favorites
Compare this product

Go to the Balluff GmbH website for more information

Characteristics

Sensing mode
diffuse
Housing
rectangular
Type of beam
LED
Other characteristics
compact
Maximum range

Max.: 15 mm
(0.6 in)

Min.: 0 mm
(0 in)

Description

Series R020K Dimension 7.7 x 26.8 x 13.5 mm Interface PNP normally open (NO) Principle of operation Photoelectric sensor Principle of optical operation Diffuse sensor, HGA fixed Special optical feature Background suppression Beam characteristic Focus, typical at 7.5 mm Light type LED, red light Light spot size Ø 2 mm at 8 mm Connection Cable with connector, M8x1-Male, 3-pin, 0.20 m, PVC Housing material ABS Material sensing surface PMMA Operating voltage Ub 10...30 VDC Approval/Conformity CE cULus WEEE
