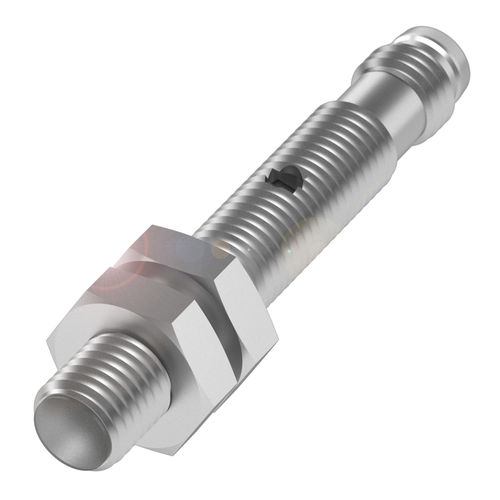

Capacitive level sensor BCS002Afor liquidsanalogIP65
Add to favorites
Compare this product
Characteristics
- Technology
- capacitive
- Medium
- for liquids
- Interface
- analog
- Other characteristics
- IP65
- Level range
Max.: 1.5 mm
(0.06 in)Min.: 0.1 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -10 °C
(14 °F)
Description
Dimension
Ø 8 x 54 mm
Series
M08
Thread (A)
M8x1
Installation
for flush mounting
Connection
Connector, M8x1-Male, 3-pin
Switching output
PNP normally open (NO)
Switching frequency
100 Hz
Sensitivity
Switching distance adjustable
Housing material
1.4301 stainless steel
Material sensing surface
PTFE
Operating voltage Ub
11...30 VDC
Approval/Conformity
CE
cULus
WEEE
IP rating per IEC 60529
IP65
