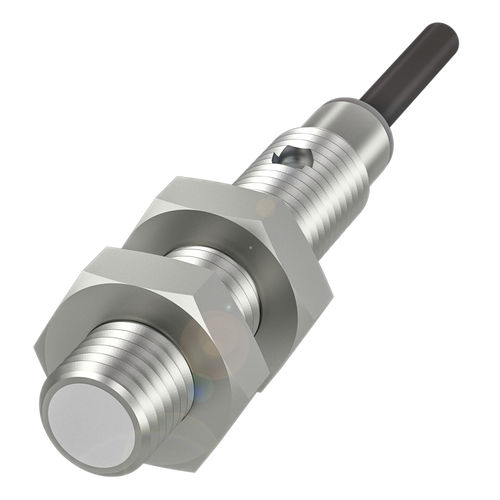

Capacitive level sensor BCS0026for liquidsanalogIP65
Add to favorites
Compare this product
Characteristics
- Technology
- capacitive
- Medium
- for liquids
- Interface
- analog
- Other characteristics
- IP65
- Level range
Max.: 1.5 mm
(0.06 in)Min.: 0.1 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -10 °C
(14 °F)
Description
Dimension
Ø 8 x 42 mm
Series
M08
Thread (A)
M8x1
Installation
for flush mounting
Connection
Cable, 2.00 m, PUR
Switching output
PNP normally open (NO)
Switching frequency
100 Hz
Sensitivity
Switching distance adjustable
Housing material
1.4301 stainless steel
Material sensing surface
PTFE
Operating voltage Ub
11...30 VDC
Approval/Conformity
CE
cULus
WEEE
IP rating per IEC 60529
IP65
