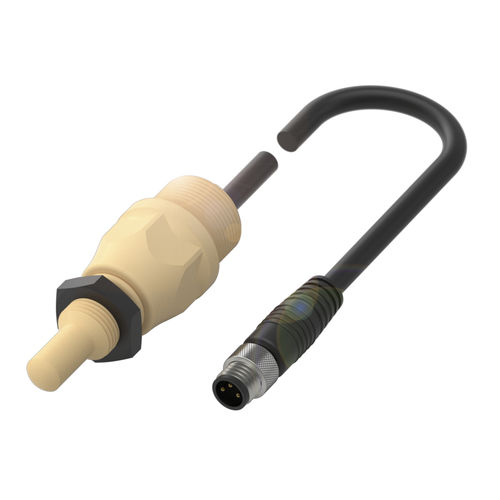

Capacitive level sensor BCS0105
for liquidsanalogsmart

Capacitive level sensor - BCS0105 - Balluff GmbH - for liquids / analog / smart
Capacitive level sensor - BCS0105 - Balluff GmbH - for liquids / analog / smart
Capacitive level sensor - BCS0105 - Balluff GmbH - for liquids / analog / smart - image - 2
Capacitive level sensor - BCS0105 - Balluff GmbH - for liquids / analog / smart - image - 3
Add to favorites
Compare this product

Go to the Balluff GmbH website for more information

Characteristics

Technology
capacitive
Medium
for liquids
Interface
analog
Other characteristics
smart, IP67
Process temperature

Max.: 105 °C
(221 °F)

Min.: -5 °C
(23 °F)

Description

Dimension Ø 12 x 62.5 mm Series S44 Thread (A) M12x1 Installation non-flush Connection Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR Switching output PNP normally open (NO) Switching frequency 5 Hz Sensitivity media-dependent, adjustable Function Smart Level 15 Additional features Electrically conductive media Foam and residue compensation Housing material PEEK Material sensing surface PEEK Operating voltage Ub 10...30 VDC Approval/Conformity CE UKCA WEEE cULus IP rating per IEC 60529 IP67
