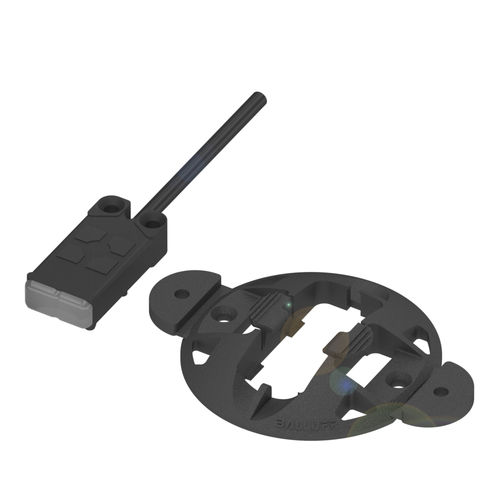

Capacitive level sensor BCS012L

for liquidsanalogsmart

Dimension 34 x 16 x 8 mm Series R08 Installation flush with container outer wall Connection Cable, 2.00 m, PUR Switching output NPN normally closed (NC) Switching frequency 10 Hz Sensitivity teachable depending on media Function Smart Level 50 Additional features Electrically conductive media Foam and residue compensation Housing material PP Material sensing surface PP Operating voltage Ub 12...30 VDC Approval/Conformity cULus CE UKCA WEEE IP rating per IEC 60529 IP67
