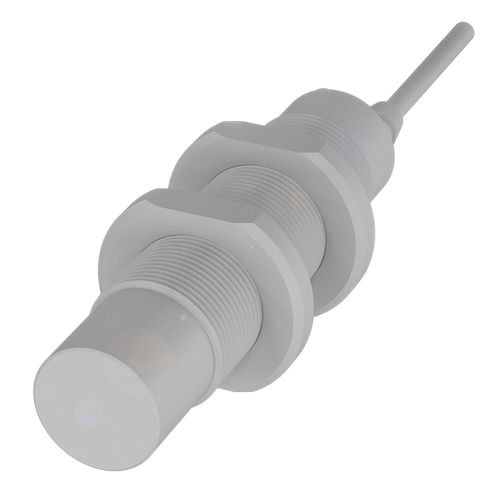

Capacitive level sensor BCS008Cfor liquidsanalogsmart
Add to favorites
Compare this product
Characteristics
- Technology
- capacitive
- Medium
- for liquids
- Interface
- analog
- Other characteristics
- smart, IP66
- Process temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
Dimension
Ø 18 x 73 mm
Series
M18
Thread (A)
M18x1
Installation
non-flush
Connection
Cable, 2.00 m, PTFE
Switching output
PNP normally closed (NC)
Switching frequency
2 Hz
Sensitivity
media-dependent, adjustable
Function
Smart Level 15
Additional features
Electrically conductive media
Foam and residue compensation
Housing material
PTFE
Material sensing surface
PTFE
Operating voltage Ub
10...35 VDC
Approval/Conformity
CE
cULus
WEEE
IP rating per IEC 60529
IP66
