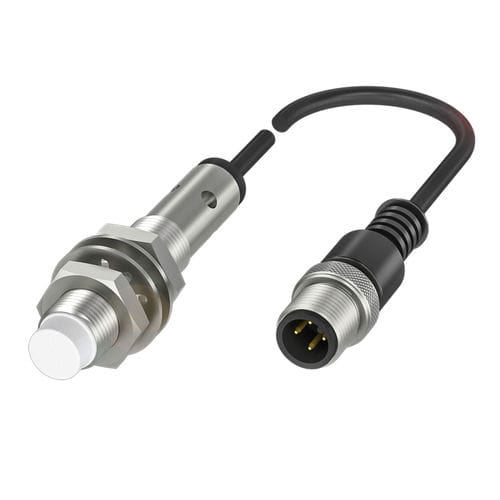

Inductive proximity sensor BAW0015cylindricalM12M12 connector
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Electrical connection
- M12 connector
- Supply voltage
- 24 Vdc, 12 Vdc, 15VDC
- Mounting
- non-flush
- Material
- brass
- Protection level
- IEC, IP67
- Length
65 mm
(2.56 in)- Width
12 mm
(0.47 in)- Measuring range
Min.: 1 mm
(0.04 in)Max.: 4 mm
(0.16 in)- Process temperature
Min.: -10 °C
(14 °F)Max.: 70 °C
(158 °F)
Description
Dimension
Style
M12x1
Installation
non-flush
Analog output
Analog, voltage 0...10 V
Output characteristic
falling on approach
Limit frequency –3 dB
500 Hz
Repeat accuracy per BWN
±10 µm
Non-linearity max.
±90 µm
Housing material
Brass, nickel-plated
Material sensing surface
PBTP
Connection
Cable with connector, M12x1-Male, 3-pin, 0.50 m, PUR
Operating voltage Ub
IP rating per IEC 60529
Approval/Conformity
CE
UKCA
cULus
WEEE
