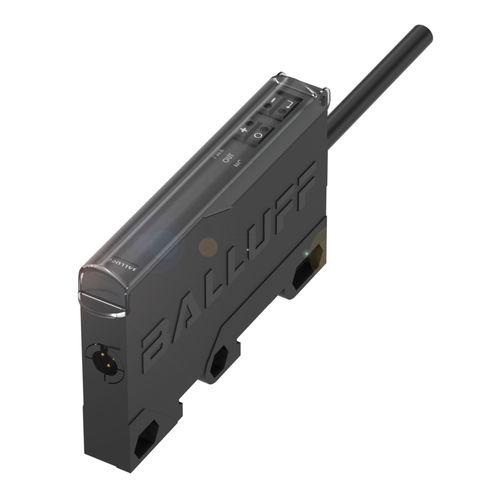

Current amplifier BAE00KJ
voltageswitchinganalog

Current amplifier - BAE00KJ - Balluff GmbH - voltage / switching / analog
Current amplifier - BAE00KJ - Balluff GmbH - voltage / switching / analog
Current amplifier - BAE00KJ - Balluff GmbH - voltage / switching / analog - image - 2
Current amplifier - BAE00KJ - Balluff GmbH - voltage / switching / analog - image - 3
Add to favorites
Compare this product

Go to the Balluff GmbH website for more information

Characteristics

Type
voltage, current
Secondary function
switching
Other characteristics
analog, programmable
Voltage

Min.: 15 V

Max.: 30 V

Frequency

100 Hz

Description

Dimension 10.5 x 45 x 75.5 mm Connection Cable, 2.00 m, PUR Switching output PNP/NPN NO/NC programmable Analog output Analog, voltage/Analog, current 0…10 V/4…20 mA Housing material PBT Ambient temperature -10...70 °C Approval/Conformity CE UKCA cULus WEEE IP rating per IEC 60529 IP40 Time function On/off delay time programmable
