Through-beam sensor photoelectric sensor BOD002N
rectangularlaseranalog

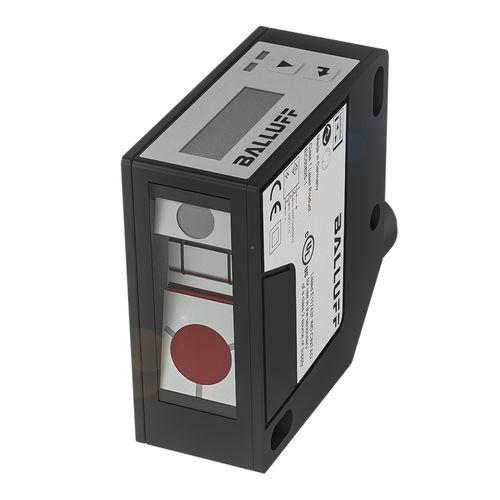

Through-beam sensor photoelectric sensor - BOD002N - Balluff GmbH - rectangular / laser / analog
Through-beam sensor photoelectric sensor - BOD002N - Balluff GmbH - rectangular / laser / analog
Through-beam sensor photoelectric sensor - BOD002N - Balluff GmbH - rectangular / laser / analog - image - 2
Through-beam sensor photoelectric sensor - BOD002N - Balluff GmbH - rectangular / laser / analog - image - 3
Through-beam sensor photoelectric sensor - BOD002N - Balluff GmbH - rectangular / laser / analog - image - 4
Through-beam sensor photoelectric sensor - BOD002N - Balluff GmbH - rectangular / laser / analog - image - 5
Through-beam sensor photoelectric sensor - BOD002N - Balluff GmbH - rectangular / laser / analog - image - 6
Add to favorites
Compare this product


Characteristics

Sensing mode
through-beam sensor
Housing
rectangular
Type of beam
laser
Other characteristics
analog
Maximum range

Max.: 650 mm
(25.6 in)

Min.: 50 mm
(2 in)

Description

Series 24K Dimension 50 x 21 x 50 mm Interface IO-Link 1.1 Analog, voltage/Analog, current selectable 4…20 mA 0…10 V 2x PNP/NPN NO/NC Principle of operation Photoelectric sensor Principle of optical operation Triangulation Beam characteristic Divergent Light type Laser red light Light spot size 1.2 x 1.2 mm at 650 mm Accuracy ±1 % Repeat accuracy ± 50 µm Resolution ≤ 100 µm Connection Connector, M12x1-Male, 4-pin Housing material Plastic Operating voltage Ub 18...30 VDC Approval/Conformity CE cULus WEEE © 2023 Balluff GmbH
