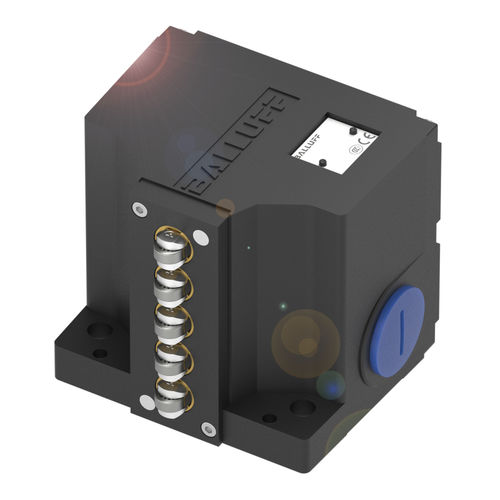

Rotating cam limit switch BNS0298

IECmechanicalindustrial

Dimension 79 x 48 x 63 mm Housing material Aluminium, Anodized Number of switching positions 3x Roller Version Snap contact Operating principle 1-3. Switch position: Mechanical Continuous current 1-3. Switch position: 6 A Rated operating voltage Ue 1-3. Switch position: 250 V AC Installation Vertical Approach direction longitudinal, parallel to attachment surface Approach speed 1-3. Switch position: 60 m/min Switch position spacing 12 mm Connection type 1-3. Switch position: Screw terminal Ambient temperature -5...85 °C IP rating per IEC 60529 IP67 Approval/Conformity CE UKCA CCC WEEE
