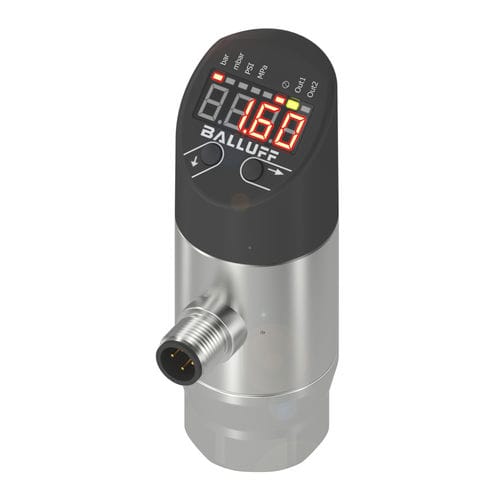

Relative pressure sensor BSP00Y4membraneanalogIO-Link
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- membrane
- Output
- analog, IO-Link
- Electrical connection
- M12 connector
- Mounting
- threaded
- Protection level
- IP67
- Applications
- process
- Other characteristics
- male
- Pressure range
Max.: 10 bar
(145.04 psi)Min.: 0 bar
(0 psi)- Process temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
Accuracy
±0.5 % FSO BFSL
Overload pressure
20 bar
Burst pressure
35 bar
Operating voltage Ub
18...30 VDC
Interface
IO-Link 1.1
Analog output
Analog, voltage/Analog, current selectable 4…20 mA/0…10 V
Switching output
2x PNP/NPN NO/NC selectable
Connection
Connector, M12x1-Male, 4-pin
Process connection
G 1/4" (DIN 3852)
Process connection material
1.4301 stainless steel
Gasket, material
FKM
Housing material
1.4301 stainless steel
PE, High-density polyethylene
IP rating
IP67, when threaded in
Approval/Conformity
CE
UKCA
cULus
WEEE
