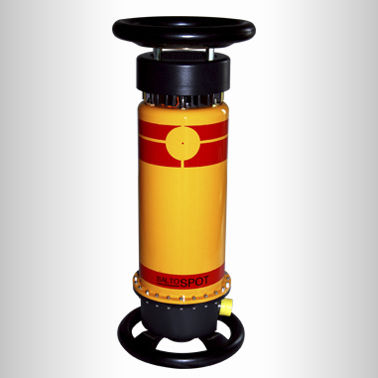

Panoramic X-ray generator GFC305

portablefor inspection crawlers

The GFC305 is a panoramic portable unit derived from our well known Crawler series but designed to be operated on field without mechanical carriage. This unit has then naturally inherited the reliability of the crawler technology of Balteau NDT. The GFC305 can deliver up to 300 kV and 5 mA and can be classified in the range of high power units available at Balteau NDT. Fields of operations for this kind of equipment are generally piping industry, tanks, reservoirs and hollowed components, where a panoramic exposure can be done. It will easily surpass the poor contrast of Isotopes and will be a very interesting replacement in medium thickness ranges where Isotopes are generally not performing well. In combination with a GFD (Directional) or a CERAM, the GFC305 will allow you to perform all kind of exposures with a limited number of units. This unit has to be combined to one of the two available types of control units (CF2000 or Hand X). It is self recognized by any of our control units.
