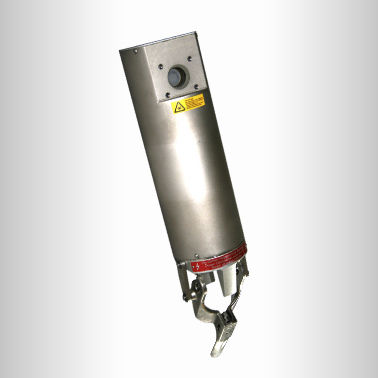

Directional X-ray tube TSD160/3

single-pole

The TSD160/3 is a Monopolar tube designed for radioscopy installations or for applications where working cycle is extremely important. Indeed, the tube is mounted with two identical small size filaments adapted to the radiography or radioscopy of light alloys, composites or small steel thicknesses. One filament can be considered as a spare of the other one and due to the fact that sizes are identical, can replace a broken filament without the need of re-qualification of the technique or a change in the parameters. The outside diameter of the housing is barely 100 mm which will ensure that the tube can be inserted even in tiny spaces. The tube shielding is internal and reduces the radiation leakage to less than 1 R/h @ 1 m as required by International standards. In and out fluid inlets are mounted with universal connectors while the HV plug cone is a R24. This tube can be used with all brands of generators provided that the load curve can be adapted. See our specialists if you intend to connect this tube to another unit than a BALTEAU.
