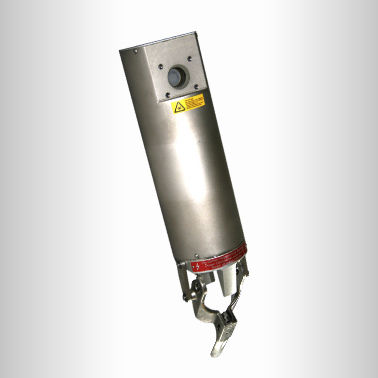

High-energy X-ray tube TSD 160/5

single-pole

The TSD 160/5 is a universal Monopolar tube for light alloys, composites or for small to medium steel thicknesses. Thanks to its small focal spot, this tube is convenient for applications where power and precision are required. As it is dual focal spot, the large focal spot allows you to reach until 1.8 kw which is suitable for applications where thicknesses are relatively important or for absorbing materials. The small focal spot will be adapted for applications using an optical magnification, for light material, small steel thicknesses or even for radioscopy. The outside diameter of the housing is barely 100 mm which will ensure that the tube can be inserted even in tiny spaces. The tube shielding is internal and reduces the radiation leakage to less than 1 R/h @ 1 m as required by International standards. In and out fluid inlets are mounted with universal connectors while the HV plug cone is a R24. This tube can be used with all brands of generators provided that the load curve can be adapted. See our specialists if you intend to connect this tube to another unit than a BALTEAU.
